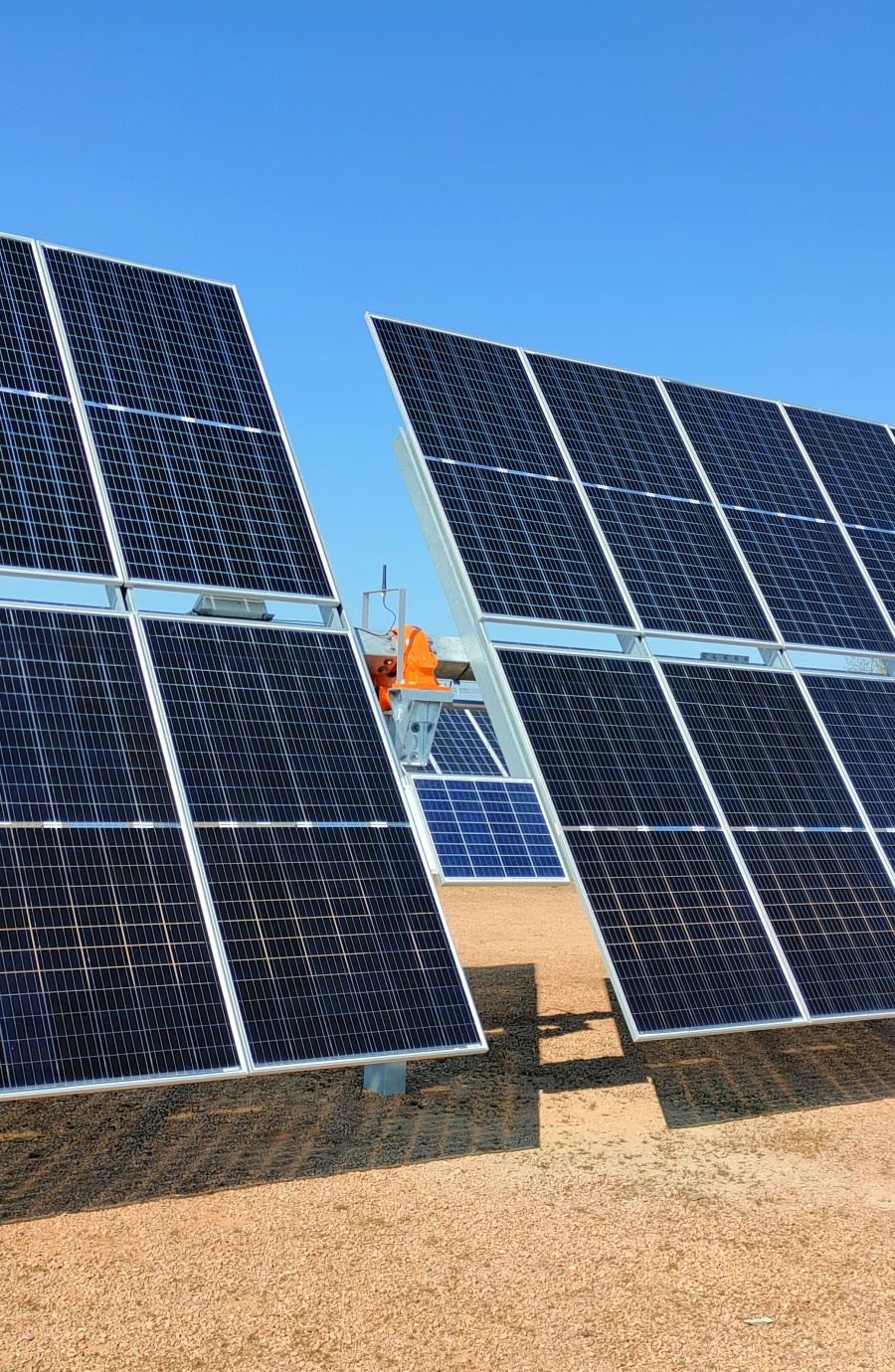

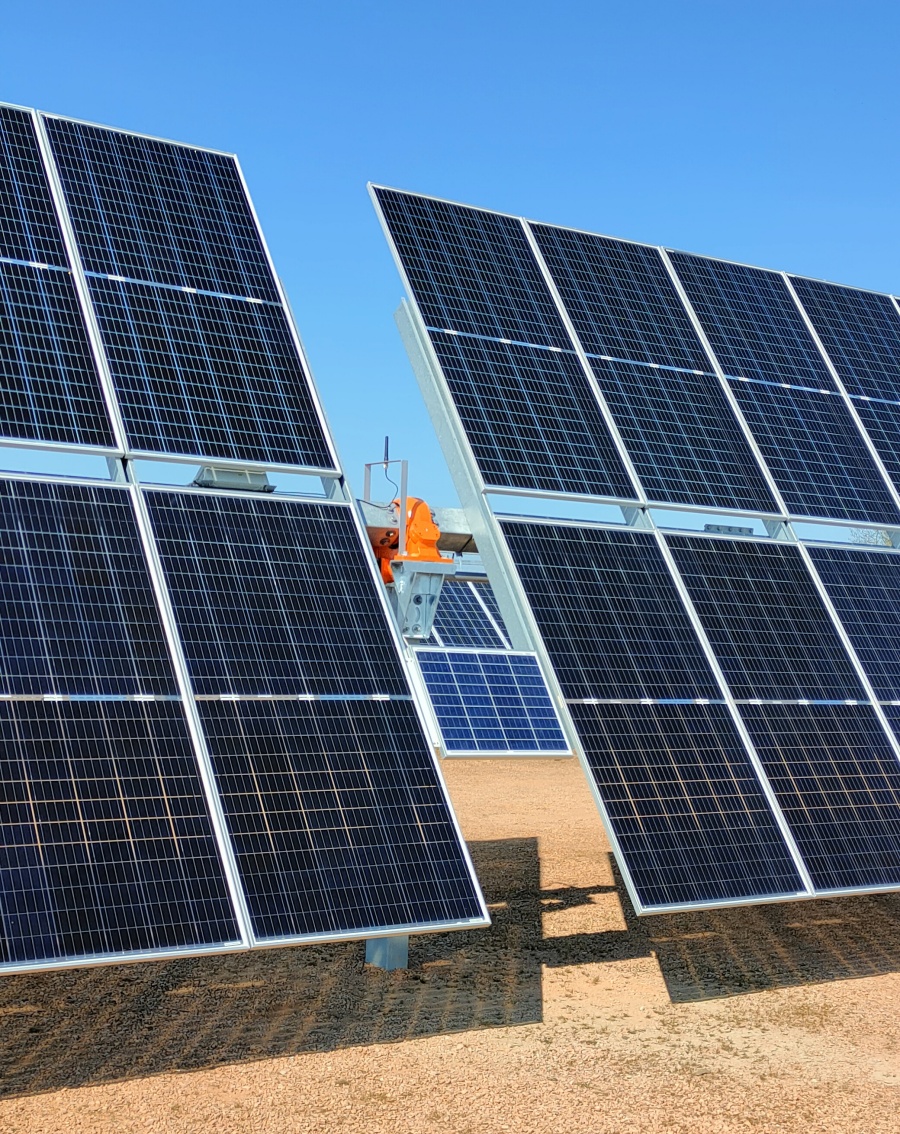

iTracker XL
SOLTIGUA’S NEWEST ADDITION TO THE PV TRACKER PORTFOLIO
iTracker XL is engineered to provide the PV market with a safe solution to the 2V configuration.
Designed to accommodate 2 module in portrait, its multi-drive system ensures the resistance to wind generated aeroelastic instabilities.
Designed to accommodate 2 module in portrait, its multi-drive system ensures the resistance to wind generated aeroelastic instabilities.
- 2V Configuration
- This new modular configuration can contain up to 120 PV modules of large format (4 strings at 1500 V)s
- Wind resistance
- Its structure can resist up to 160 km/h (in stow position). Reliable rotation blocks strategically located along the tracker ensure resistance to static, dynamic and aerolastic wind loads.
- Terrain adaptability
- Freely configurable by the customer (between 34% and 50% ground cover ratio)
- Max 15% slope in longitudinal direction (North- South)
- Ease of installation
- Minimum number of piles per MW
- No welding nor drilling required on site
- Facilitated O&M
- Proprietary NFC app to support fast commissioning and seamless O&M
- Large free corridors facilitate cleaning operations
iTracker XL
SOLTIGUA’S NEWEST ADDITION TO THE PV TRACKER PORTFOLIO
iTracker XL is engineered to provide the PV market with a safe solution to the 2V configuration.
Designed to accommodate 2 module in portrait, its multi-drive system ensures the resistance to wind generated aeroelastic instabilities.
Designed to accommodate 2 module in portrait, its multi-drive system ensures the resistance to wind generated aeroelastic instabilities.
- 2V Configuration
- This new modular configuration can contain up to 120 PV modules of large format (4 strings at 1500 V)s
- Wind resistance
- Its structure can resist up to 160 km/h (in stow position). Reliable rotation blocks strategically located along the tracker ensure resistance to static, dynamic and aerolastic wind loads.
- Terrain adaptability
- Freely configurable by the customer (between 34% and 50% ground cover ratio)
- Max 15% slope in longitudinal direction (North- South)
- Ease of installation
- Minimum number of piles per MW
- No welding nor drilling required on site
- Facilitated O&M
- Proprietary NFC app to support fast commissioning and seamless O&M
- Large free corridors facilitate cleaning operations
Desert Ready
A new version of Soltigua’s iTracker optimized for desert environment.
Key moving parts of Soltigua’s iTracker were tested to withstand sand abrasion for an equivalent 55+ years in harsh desert conditions. Want to see the outcome?
